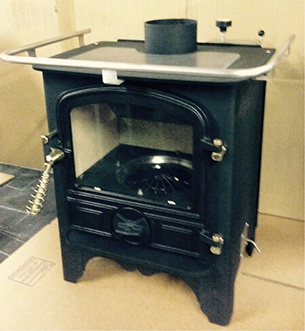

B1 HALF POD OIL STOVE





                                                                                                                                                               Silent Simplicity just for you

22-05-15

The B1 Half Pod is a new stove based on the popular B1 oil stove which has been successfully sold into the marine market for the past 20 years.



The new stove has:-

• Stove top cooking plate.

• Optional fiddle rail.

• Stay cool door handle.

• Improved decorative ash catcher.

• New style hinges and hinge pins.

• Optional choice of stainless or brass fittings.

• More colour choice.



It can heat narrow boats up to 60 feet in length burning kerosene or diesel in a controlled manner, utilising an open flue to discharge the products of combustion.

It is designed to run with or without a coal fired effect kit which when fitted will create the effect of a coal fire with all the pleasure that this can bring, but remove the need to constantly re fuel and de ash, (stove  running at full output.)















CLEAN AND CONVENIENT

Why carry coal and wood around when you already have diesel aboard!

Bring an end to constant refueling and d-ashing and get rid of all the dust and mess.



CONSTANT WARMTH

Unlike solid fuel stoves, oil stoves can run at a constant steady temperature creating a much more comfortable environment and minimise condensation.



DRY OR WET VERSIONS.

Corner Stoves can be supplied with or without a water heating boilers.



ADDITIONAL FEATURES

Fully adjustable door hinges.

Fully adjustable door lock.

Stay cool easy to use door handle.

Optional Coal Kit.

Optional fiddle rail in brass or stainless.



APPLICATIONS

Still Water Boats

Mobile Homes

 Holiday Homes

Summer Houses

Garden Rooms and Garden Centres

Conservatories

Showman's Homes

Shepherds Huts

Mountain Chalets

Youth  Hostels

Building Sites

Boats and Caravans.





ABOUT THE STOVE

The stove has been specially designed so that it can be quickly and easily manually ignited through a conveniently placed lighting port without the need to remove the coal kit or pot inners, because of this it can be rapidly turned on and off and if required, does not need to run on a continuous basis.

The stove can be run on 28sec kero or 35 sec diesel.

The top of the stove can be used for  cooking on the hot plate.

It will provide a variety of heating options -:

Space heating only.

Space heating and hot water and there are 2 boiler versions and one dry version.

The flueing is top only 100mm dia.

There are currently two colours available

Black and or Gunmetal with Ivory and Dark Forest Green as optional extras.



CONTROLS

The appliance is controlled by the rear mounted oil control valve, of which there are three types,

Manual for dry stoves.

Automatic electric for boiler versions.

Automatic electric for boiler or dry stoves.



OPTIONAL EXTRA ITEMS

Add in boiler indirect 2 kW

Add in boiler indirect 3.5 kW

Fiddle rail kit.

Ecofan self-powered air mover.

Remote sensing firevalve.

Isolation Valve.

Flue and chimney systems.

Ivory and Dark Forest Green paint colours.

Fiddle rail in Brass or Stainless

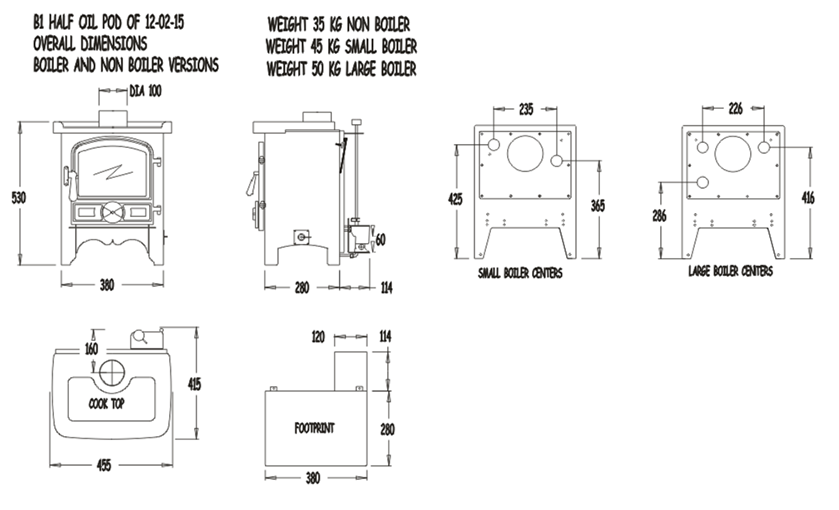

WEIGHT.

Dry Stove  35kg

Wet Stove  45kg

Designed and manufactured in the U.K.
