INFORMATION SHEET

CORNER OIL PIE POD

05-05-15









SILENT SIMPLICITY JUST FOR YOU ©

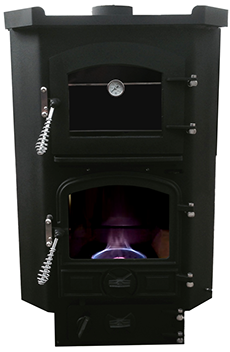

If you want a cosy warm and steady temperature on your boat, if you are using a solid fuel stove and you want top get rid of all the mess and dirt, if you want to a little more fun cooking with something interesting and different to look at, then the Corner Oil Pod could be just what you want.

It has been designed to fit into confined spaces and offer a multiple range of attractive features such as cooking and radiant heating with the additional option of central heating and domestic hot water heating.

From its 4 kW maximum output it can heat boats up to 60 feet in length burning kerosene or diesel.

There is a boiler version capable of heating space + two radiators + a hot water cylinder and the flueing is top only 100mm dia.

To enhance your décor choice it can be supplied with Bright or Brass fittings and is available in two standard colours, Black and or Gunmetal with Ivory and Dark Forest Green as optional colours.









• Oven Features

TRIANGULAR, dome topped oven, heated on all five sides with oven vent and a 6mm thick, heavy duty, replaceable steel oven bottom plate capable of accepting a 200mm casserole dish.

It is supplied with a stainless pastry tray and matching wire rack with lift out tool.

Two position stainless tray supports.

Glass paneled oven door with temperature gauge.

Stay cool oven door handle.



• Seamless Integration.

Triangular profile and built in heat shields allow the stove to be integrated seamlessly with interior layouts creating a purposeful, fully fitted look.



• Clean and Convenient

Don’t carry coal and wood around when you already have diesel aboard!

Bring an end to constant refueling and de-ashing.

Get rid of all the dust and mess.



• Constant Warmth

Unlike solid fuel stoves, oil stoves can run at a constant steady temperature creating a much more comfortable environment and so minimize condensation.



• Dry or Wet Versions.

Can be supplied with or without a water heating boiler. Unlike all other stoves the boiler is fully integrated and wraps around the two right angle sides of the stove keeping the rear outer surface of the appliance water cooled, allowing it to be fitted into tight locations.



• Integrated Fiddle Rail

Integrated fiddle rail to stop cook pans slipping off the top plate.



• Additional Features

Fully adjustable door hinges.

Fully adjustable door lock.

Stay cool easy to use door handle.



• Applications

Still Water Boats-Mobile Homes-Holiday Homes-Summer Houses

Garden Rooms-Conservatories-Showman's Homes-Shepherds Huts

Mountain-Chalets-Youth Hostels-Building Sites-Boats and Caravans.



• More Information

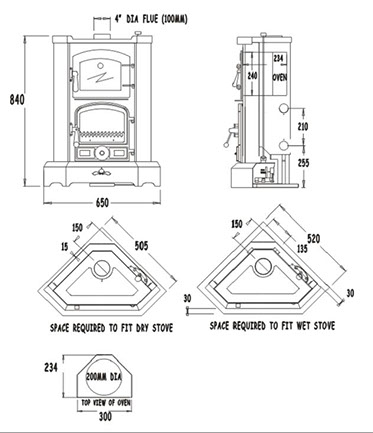

The triangular shape allows the stove to be fitted into a suitable corner so minimising the use of space.

The triangular base acts as a built in drip tray and positioning device to allow adequate clearances for air to circulate around the heater panels and convect heat.

The oven and cook top of the stove can be used for a variety of heating and cooking applications.

The stove features a front mounted oil control valve with easy access to the control knob, it uses a more economical burner which will run at 3cc's (.18 of a litre per hour) on minimum firing rate and 10cc's (.6 of a litre per hour) on maximum firing rate.

To work out the running costs find out the price per litre of the diesel that you are buying and do some simple maths.



• Optional Extra items

Ecofan self-powered air mover.

Remote sensing firevalve.

Isolation Valve.

Flue and chimney systems.





WEIGHT.

Dry Stove  85kg  Wet Stove  110kg

Designed and manufactured in the U.K. by Boaters for Boaters.
